IZE LED OG DRIVING LIGHT 9" Strands IZE LED OG DRIVING LIGHT 9" Strands IZE LED OG DRIVING LIGHT 9" Strands

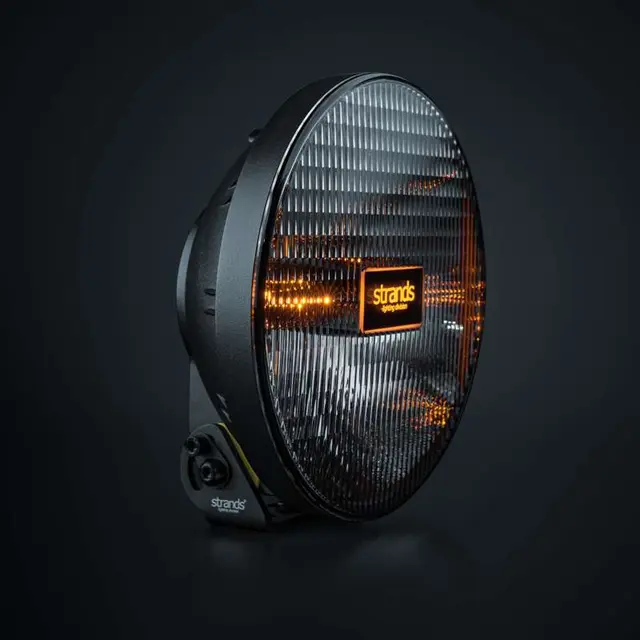

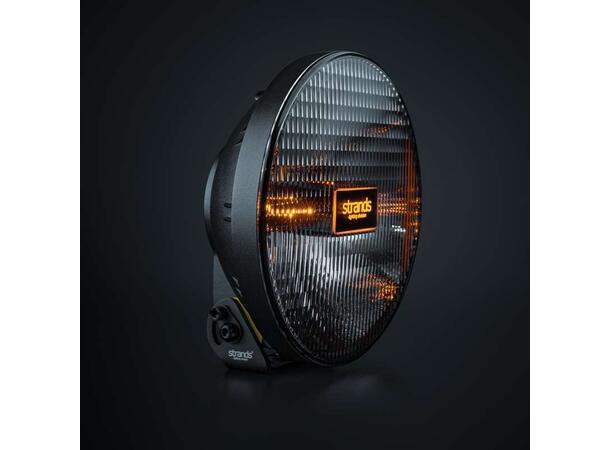

IZE LED OG DRIVING LIGHT 9"

Strands

Varenr:270945-SLD
Alt. varenr: 270945
6 På lager
0 Sandnes
0 Trondheim
0 Skien
    • Unitpcs
    • Voltage12-36V DC
    • Theoretical effect180W
    • FunctionsHigh beam, Amber and white position light
    • Consumption specific functionXperience mode: 172W / E-mode: 30W / White pos. light: 1W / Amber pos. light: 1W
    • Theoretical lumen13500lm
    • Actual lumenE-mode: 3220lm / Xperience mode: 12000lm

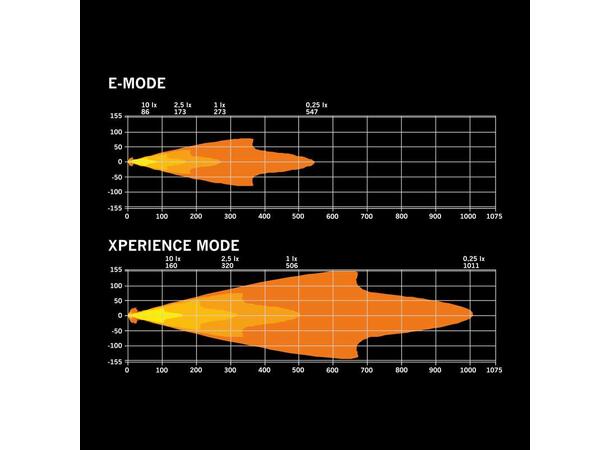

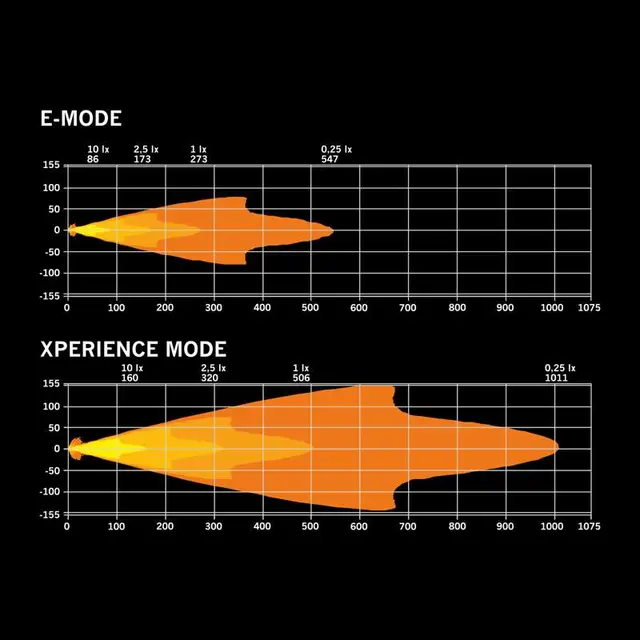

    • 1 lux @E-mode: 273m / Xperience mode: 506m
    • Color temperature4500K
    • Beam patternExtended beam
    • Beam angle33,2°
    • ConnectionCable
    • Cable length2500mm
    • Color housingBlack
    • Color lensClear
    • Color LED´sWhite/amber
    • Material bracketStainless steel
    • Material housing/chassiAluminium
    • Material lensPolycarbonate

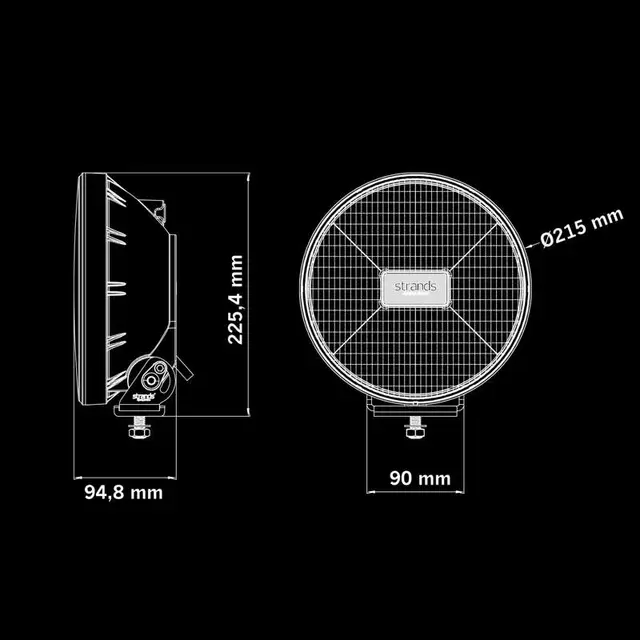

    • Depth94,8mm
    • Height including bracket225,4mm
    • Diameter215mm
    • Weight2,0kg
    • IP-classIP68/69K
    • Operating temperature-40 - +60°C
    • E-approvedYes
    • ADR-approvedNo
    • According to regulationECE R148, R149
    • Reference number20
    • EMCECE R10
