SIBERIA XPA Ekstralys 7"

Strands

Varenr:270985A-SLD
Alt. varenr: 270985A
0 På lager
0 Sandnes
2 Trondheim
2 Skien
    • Unitpcs
    • Voltage10-40V DC
    • Theoretical effect80W
    • Consumption77W
    • FunctionsDriving light, White position light, Amber position light
    • Consumption specific functionXperience mode: 77W / E-mode: 22W / White Pos. light: 5,2W / Amber pos. light: 5,2W
    • Theoretical lumen6720lm
    • Actual lumenE-mode:1540lm / Xperience mode:5710lm

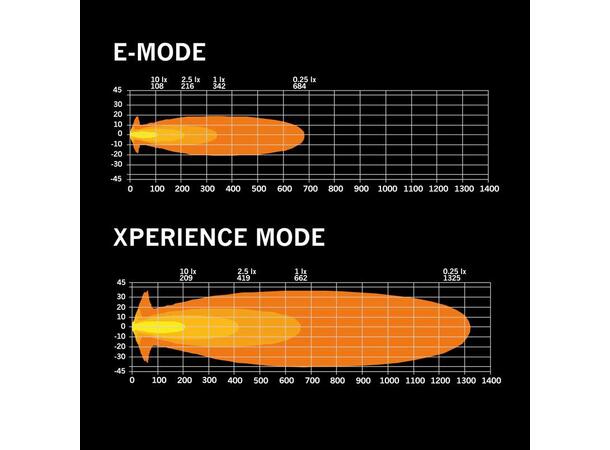

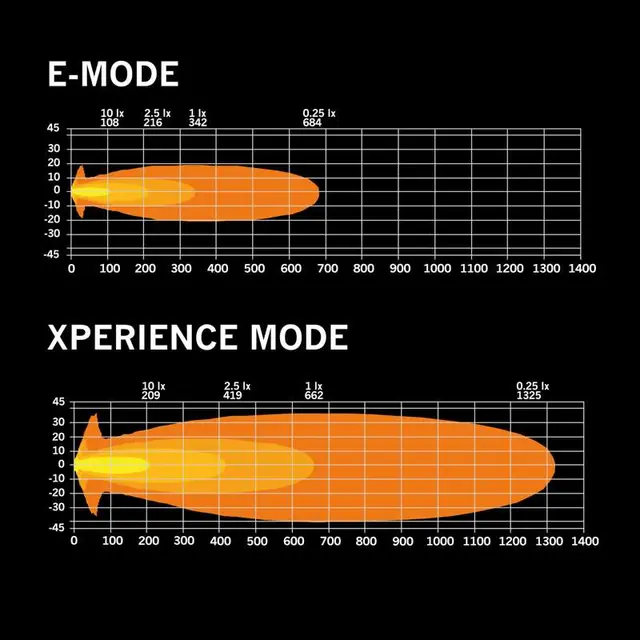

    • 1 lux @E mode: 342m / Xperience mode: 662m
    • Color temperature5700K
    • Beam patternExtended beam
    • Beam angle9,9°
    • ConnectionDT-4PIN
    • Cable length550mm
    • Color housingBlack
    • Color lensClear
    • Color LED´sWhite/amber
    • Material bracketStainless steel
    • Material housing/chassiAluminium
    • Material lensPolycarbonate

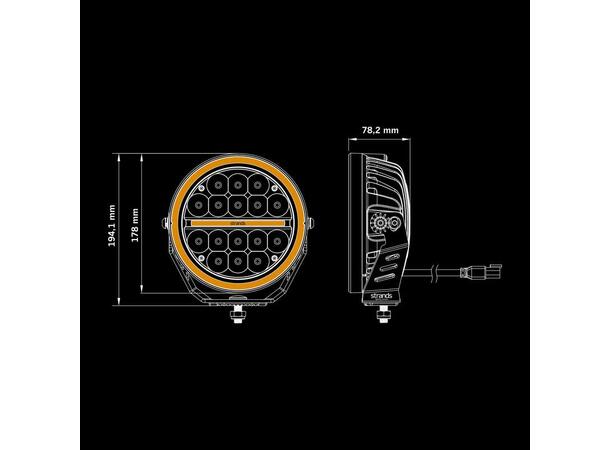

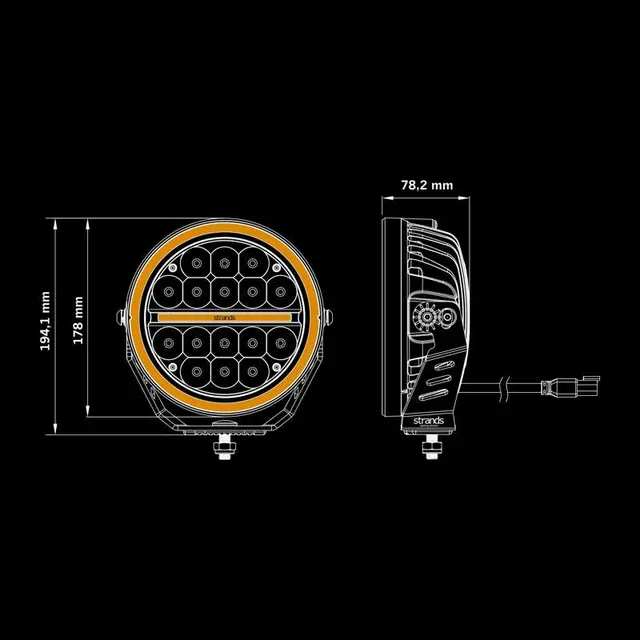

    • Length178mm
    • Depth78,2mm
    • Height178mm
    • Height including bracket194,1mm
    • Diameter178mm
    • Weight2,3kg
    • IP-classIP68/69K
    • Operating temperature-30 - +65°C
    • E-approvedYes
    • According to regulationECE R148,R149
    • Reference number20
    • EMCECE R10
