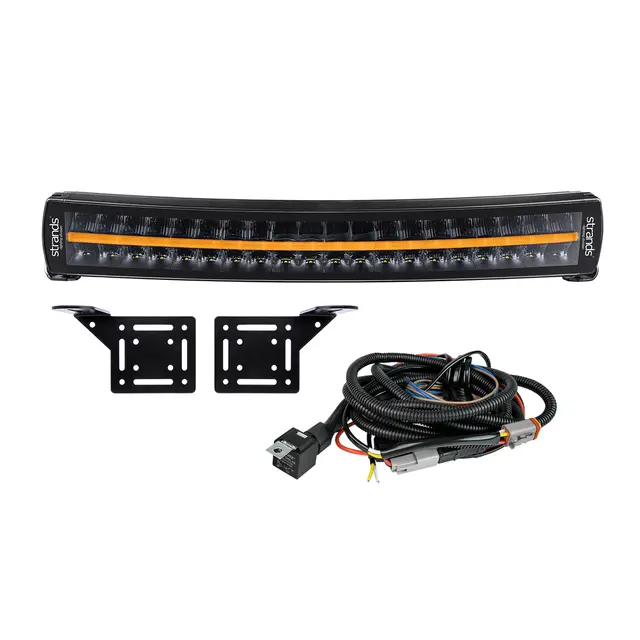

SIBERIA DRC 22" Curved LED Bar - KIT

Strands

Varenr:809196-KIT

Alt. varenr: 809196

Bestillingsvare, muligheter for ekspress leveranse, ta kontakt.(0dager)

0 Sandnes

0 Trondheim

0 Skien

Type of lamp LED
Type of LED Osram
PCS LED´s 40
Voltage (V DC) 10-40V DC
Theoretical effect (w) 12V 200
Theoretical effect (w) 24V 200
Consumption (w) 12V High beam: 91
White position light: 5.5
Amber position light: 14.5
Consumption (w) 24V High beam: 91
White position light: 5.5
Amber position light: 14.5
Theoretical lumen 16000
Actual lumen 6161
1 LUX @ m 415
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Combo
Position light Yes
Connection DT-4
Cable length (mm) 500
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 566.33
Depth (mm) 71.6
Height (mm) 76
Height including bracket (mm) 89
Operating temperature -20°C – +45°C
ADR-approved No
E-approved Yes
According to regulation ECE R112. R7
Reference number 40
EMC ECE R10
