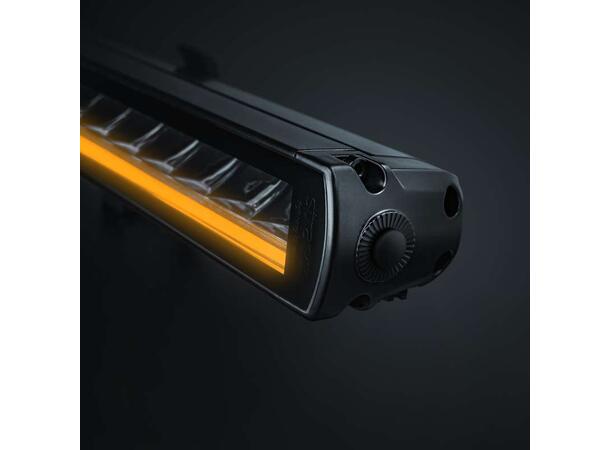

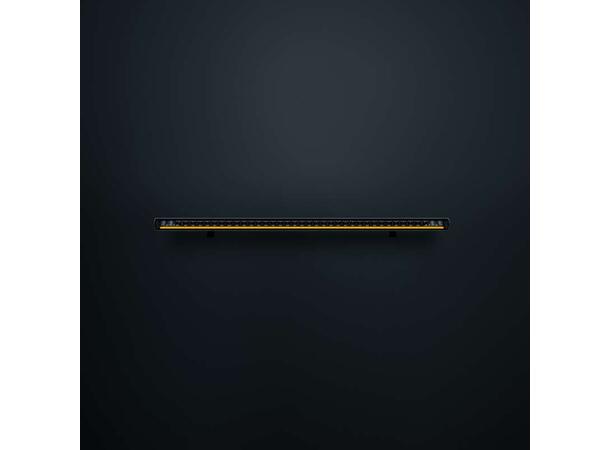

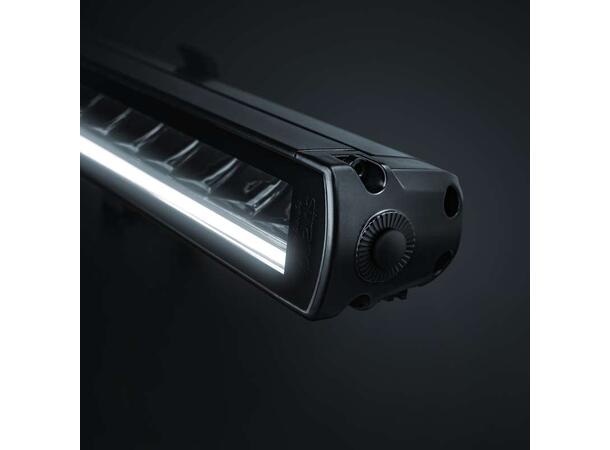

SIBERIA XPA SR LED BAR SR 32", Single row, white/amber pos.,DT-4, 55cm cable
- Unitpcs
- Voltage10-32V DC
- Theoretical effect160W
- Consumption160W
- FunctionsHigh beam,Amber and white position light, hello function for position light
- Consumption specific functionXperience mode: 160W / E-mode: 30W / White pos. light: 14,5W / Amber pos. light: 14,5W
- Theoretical lumen12000lm
- Actual lumenE-mode: 1750lm / Xperience mode: 10950lm

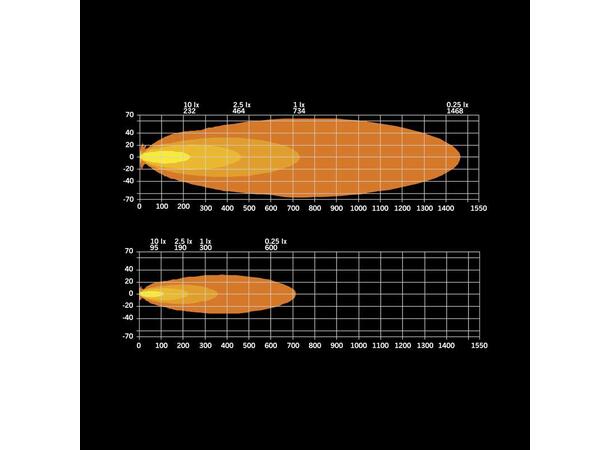

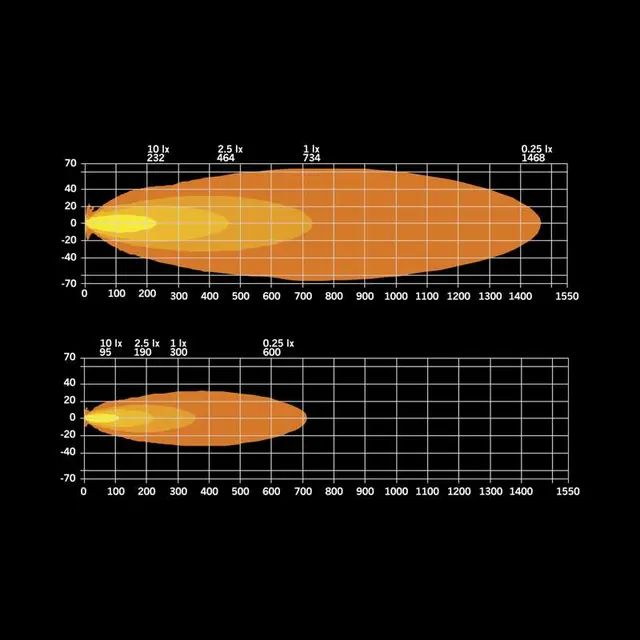

- 1 lux @E-mode: 300m / Xperience mode: 734m
- Color temperature5700K
- Beam patternLong-distance beam
- Beam angle14,4°
- ConnectionDT-4PIN
- Cable length550mm
- Color housingBlack
- Color lensClear
- Color LED´sWhite/amber
- Material bracketAluminium alloy
- Material housing/chassiAluminium
- Material lensPolycarbonate

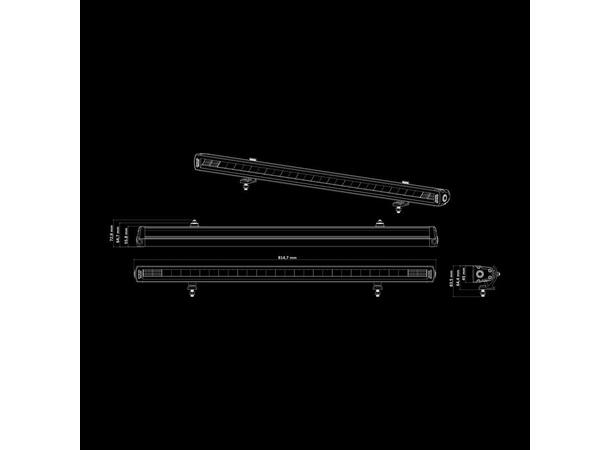

- Length814,7mm
- Depth55,5mm
- Height45mm
- Height including bracket64,5mm
- Weight2,52kg
- IP-classIP68/69K
- Operating temperature-35 - +60°C
- E-approvedYes
- According to regulationECE R148,R149
- Reference number20
- EMCECE R10
