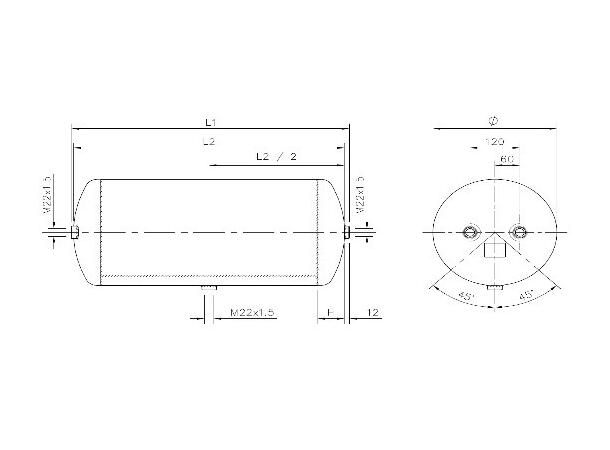

Diameter Ø : 310 mm / 12.20 in

Order-No.: SPA1012

Capacity: 60 Litres

Weight: 17.8 kg / 39.24 lb

L1: 895 mm / 35.23 in

L2: 878 mm / 34.56 in

h: 99 mm / 3.89 in

Working Pressure: 12.5 bar.
Connectors: M22 x 1,5
Temperature range: min. -50 °C to max. +100 °C
min. -58 °F to max. +212 °F

All reservoirs are powder coated internally and externally.

Standard external colour: RAL9005

Temperature range: min. -50°C max. +100°C.

Manufactured in accordance with EN286-2 and CE approved
