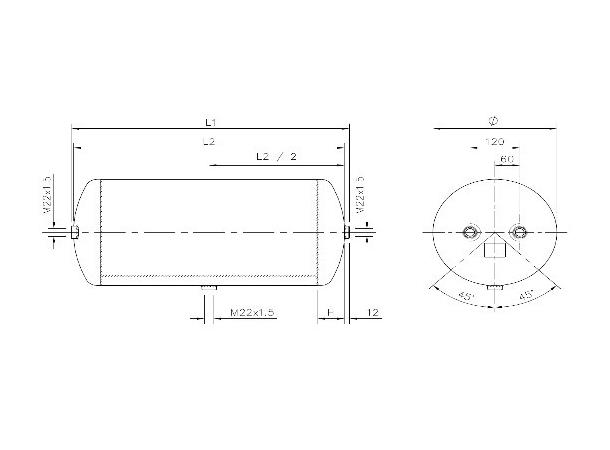

Diameter Ø : 396 mm / 15.59 in

Order-No.: SPA1014

Capacity: 80 Litres

Weight: 20.5 kg / 45.19 lb

L1: 750 mm / 29.52 in

L2: 733 mm / 28.85 in

h: 97 mm / 3.81 in

Working Pressure: 10 bar.
Connectors: M22 x 1,5
Temperature range: min. -50 °C to max. +100 °C
min. -58 °F to max. +212 °F

All reservoirs are powder coated internally and externally.

Standard external colour: RAL9005

Temperature range: min. -50°C max. +100°C.

Manufactured in accordance with EN286-2 and CE approved
