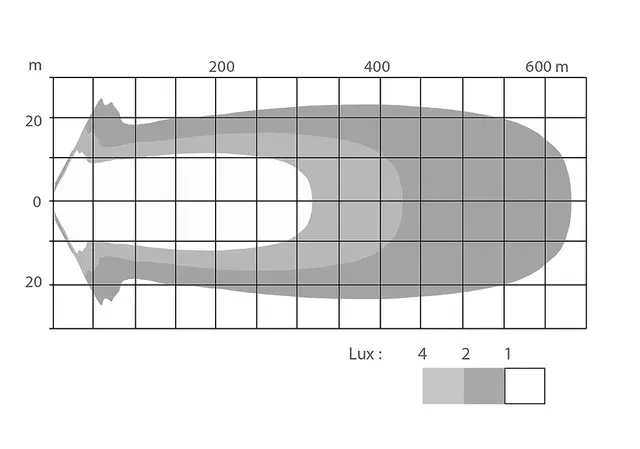

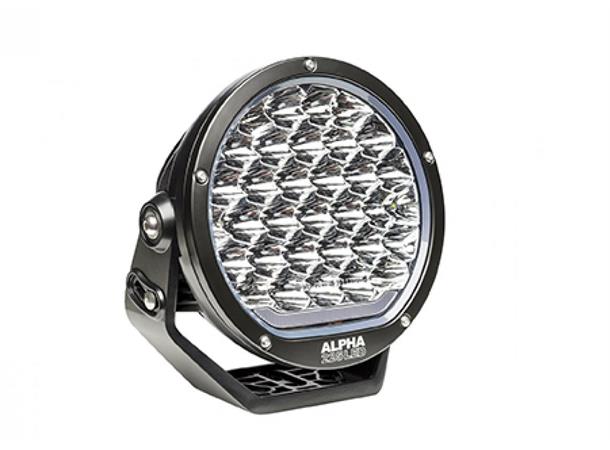

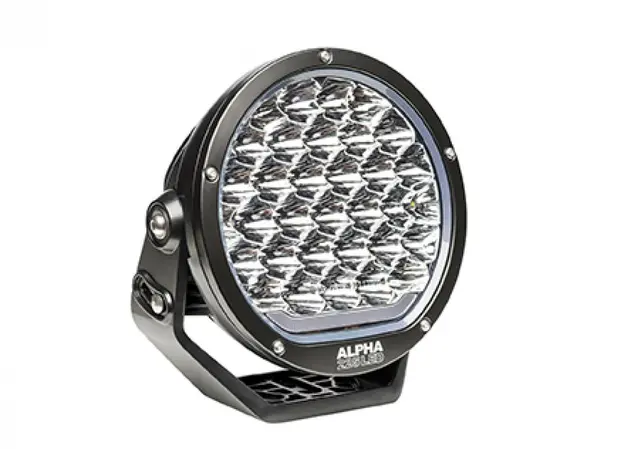

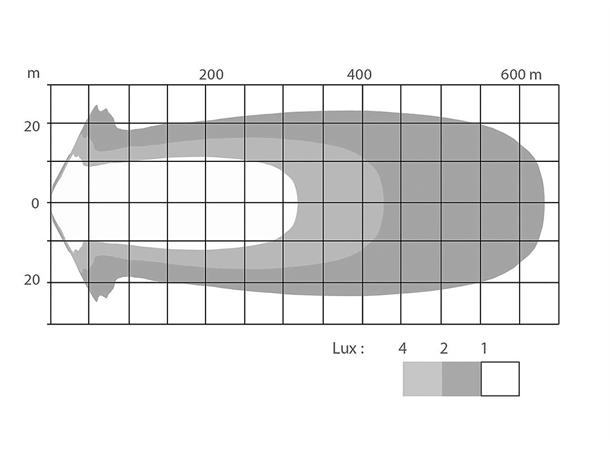

Alpha 225 LED is a full beam auxiliary LED light which exceeds the Xenon performances with an outstanding visibility through a perfect combination of width, range and volume. This light increases extraordinarily your vehicle lighting performances thanks to its specific high powered LED module which delivers an incredible light power though its class leading broad beam reflector.

Brand  NBB
Industry  Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
Voltage  10/33V
Source  LED
Consumption  150W for driving beam LED / 2,3W for pilot light LED
Amperage  6,25 AMP at 24VDC for driving beam/ 0,1 AMP at 24 VDC for pilot light
Operational Lumen  8500 Lumen
Color Temperature  5700°K
Connector  DT 3 pin, DT 3 pin harness included
Mounting  Pedestal, suspended, no tool adjustment, M10 stainless steel fasteners included
Shape  Round

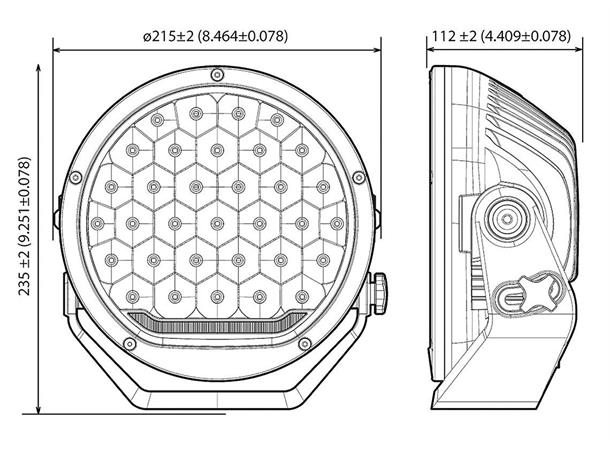

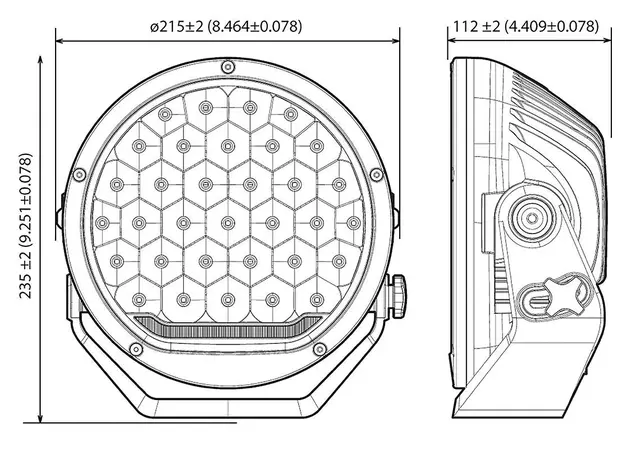

Length  215 mm
Depth  112 mm
Height  235 mm
Weight  2,8 Kg
IP protection  IP67
Polarity  Protected against reverse voltage
Operation Temperatures  -40°C to +85°C
Salt Spray Test  ISO 9227 - 240h
