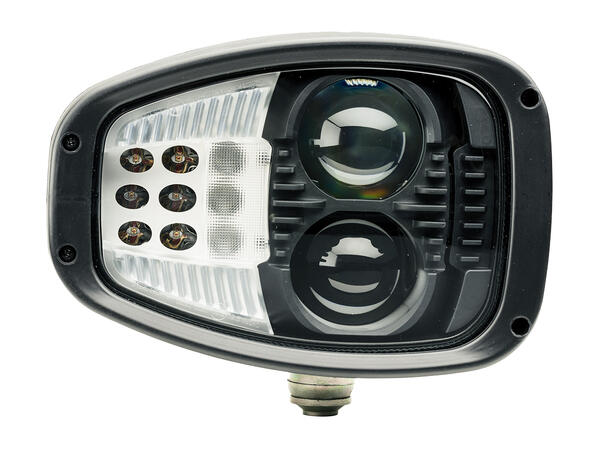

3800 LED

The 3800 LED combination drive light is an ECE or SAE approved full LED product designed for on-road and off-road vehicles. Along with numerous mounting operations, the high vibration performance of this full LED combination light allows industrial vehicles to endure extreme working conditions with virtual-free maintenance for their homologated driving lights package.

Brand  ABL
Industry  Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
Reference detail  D14325 (DT 6 pin, pedestal)
Voltage  12 - 24V
Source  LED
Consumption  48 W (low beam)/ 50W (high beam) @24V/ 3,8W (turn signal)/1,2W (pilot light)@24V
Amperage  2,0 AMP (low beam)/ 2,1 AMP (high beam) at 24V/ 0,2 AMP (turn signal)/ 0,05 AMP (pilot light) at 24V
Color Temperature  6000°K
Connector  DT 6 pin, Cable compression seal PG11
Mounting  Pedestal, suspended, rear swivel
Lens Material  Hardened glass
Length  240 mm
Depth  127 mm
Height  164 mm
IP protection  IP68 - IP69K
Polarity  Protected against reverse voltage
Electronic Thermal Management  Protected against overheating
Operation Temperatures  -40°C to +85°C
Load Dump  36V CONTINUOUS/ 58V 300ms/ 1800V 50µs
Salt Spray Test  ISO 9227
Vibration Resistance  15 Grms, from 24Hz to 2000Hz
Shock resistance  60G
Warranty  30 000 operating hours or 5 years
EMC  ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 CLASSE 3
ECE  ECE
